40.31.8.230 FINDER RELAY 24V AC 10A 1 CIRCUIT

40.31.8.230 FINDER RELAY 24V AC 10A 1 CIRCUIT
The Finder 40.31.8.230 is a miniature electromechanical power relay for PCB or socket mounting, designed for switching, isolation, and control applications in electronic equipment, control panels, automation systems, and command circuits. This version features one changeover contact (SPDT/1CO) with a 10A rating, making it a very versatile solution for load control in low- and medium-power circuits where reliability, compact size, and good insulation between coil and contacts are required.

The 40.31.8.012 model operates with a 230V AC coil, with an approximate rated consumption of 1.2VA, an operating time of around 7ms, and a release time of 3ms, providing a fast and stable response in automation systems, control interfaces, and electronic boards. In addition, its silver-nickel (AgNi) contact configuration offers good durability in frequent switching operations, while its plug-in or direct PCB mounting format simplifies integration into industrial and electronic equipment.

Thanks to its combination of double changeover contact, 230V AC coil, compact format, and international approvals, the Finder 40.31.8.230 is an ideal option for manufacturers, maintenance technicians, and integrators looking for a compact power relay with a high level of reliability for switching tasks, circuit separation, and load control in machinery, industrial electronics, and automation.

Technical Specifications:

- Number of contacts: 1 switched circuit
- Nominal Current (A): 10A
- Nominal Voltage (V): 250V
- Nominal Currente AC1 (VA): 2500 VA
- Contacts material: AgNi
- Power supply: 230V
- Coil version: AC
- Lifetime to full charge AC1 (cycles): 200.000
- Operating temperature (°C): -40+85 ēC
- Dimensions (mm): 29x12.4x25 mm

Allows to use:

- RELAY CARRIL DIN SOCKET 1 CIRCUIT
- RELAY PCB SOCKET 1 CIRCUIT




Datasheet



Price : 7,17 €

Retail Price (VAT include) : 8,68 €

  Add to Cart


 Related
Seeing 1 to 12 (12 products) Search Results Pages:   1

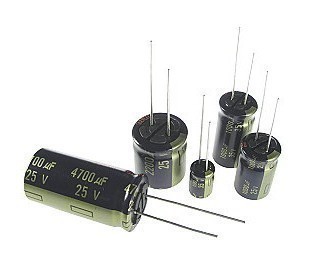

CONDENSADOR ELECTROLITICO RADIAL 1500uf 16V 10x20mm 105º
