ISOLATION TRANSFORMER 220-400V 24-48V 200VA

Single-phase 200VA control and isolation transformer, designed for professional applications where electrical safety, galvanic separation and excellent voltage regulation are required. It belongs to the prestigious TR21 CONTROL series, specially developed for control circuits, signalling and demanding industrial environments.

It features a double secondary winding (12/24V) that allows series or parallel connection, providing maximum versatility for system integration. Its primary winding supports 0-230-400V according to IEC 60038 standard values, withstanding input overvoltages of up to 10%, ensuring stable operation even under adverse mains conditions.

Designed with low impedance, the TR21 offers excellent regulation against current peaks and is able to withstand high inrush currents, typical in contactors and relays. It is built for continuous 100% duty operation in ambient temperatures up to 40ºC, with Class B insulation (130ºC) and a TIG-welded magnetic core that reduces vibrations and magnetization current.

The terminals are protected against accidental contact and comply with IEC/EN 61558-1, 2-2, 2-4 and 2-6 standards, providing a high level of safety and reliability in industrial applications, automation, electrical panels, machinery, elevators and control systems.

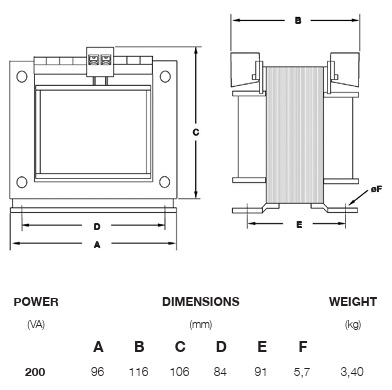

Technical Specifications:

- Power: 200VA
- Primary Voltage: 0-230-400VAC
- Secondary Voltage: 24-48VAC

Datasheet

Price : 84,72 €

Retail Price (VAT include) : 102,51 €

Add to Cart
