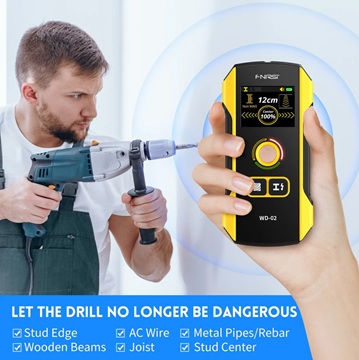

FNIRSI WD-02 LIVE WIRE, METAL AND WOOD DETECTOR

The FNIRSI WD-02 is a multifunction wall scanner designed to locate hidden elements before drilling, cutting, fixing brackets or carrying out installation work. It can detect live AC cables, ferrous metals, non-ferrous metals such as copper, metal pipes, rods, metal structures and wooden elements located behind walls, ceilings, floors, plasterboard, panels and other compatible surfaces.

Thanks to its different detection modes, the FNIRSI WD-02 helps users work more safely during renovation work, electrical installations, furniture assembly, shelf mounting, picture hanging, wall drilling, home maintenance and professional tasks. Its colour TFT display clearly shows the type of material detected, signal strength, the approximate direction of the object and the centre indication, making it easier to locate hidden elements more accurately.

The device offers metal detection up to 120mm, copper detection up to 100mm, live wire detection up to 50mm and wood detection up to 38mm, depending on the material, depth, humidity, wall type and operating conditions. It also features indicator lights, an audible alert, sensitivity adjustment, automatic shutdown and a rechargeable battery via USB-C, providing convenient and practical use for both home users and technicians, installers, electricians, carpenters and maintenance professionals.

Its compact and ergonomic design, together with the central marking hole, allows the drilling area to be identified more precisely, reducing the risk of damaging pipes, electrical cables or hidden structures inside the wall.

Technical Features:

- Detectable materials: live AC cables, ferrous metals, non-ferrous metals, metal pipes, copper, metal rods and wood
- Maximum detection depth for ferrous metal: up to 120mm
- Maximum detection depth for non-ferrous metal / copper: up to 100mm
- Maximum detection depth for live AC cables: up to 50mm
- Maximum detection depth for single-strand copper wire =4mm²: up to 40mm
- Maximum detection depth for wood / non-metallic objects: up to 38mm
- Display: HD colour TFT
- Sensitivity: adjustable in 3 levels
- Audible alert: Yes, with buzzer
- Power supply: 3.7V rechargeable lithium battery
- Battery capacity: 300mAh
- Charging connection: USB-C
- Approximate battery life: 2 hours
- Approximate dimensions: 138x68x22mm

Datasheet

Price : 40,51 €

Retail Price (VAT include) : 49,02 €

Add to Cart
