MOTOR CAPACITOR 70uF 450VAC

This 70uF 450VAC motor capacitor is an essential component for the starting and stable operation of single-phase AC motors. It is designed to provide reliable performance in applications such as water pumps, fans, compressors, extractors, light industrial machinery, and other electrical equipment that require a high-quality motor run capacitor. Its robust construction and compact design make it a very practical solution for replacement, maintenance, and repair tasks in AC motors.

Thanks to its 450VAC rated voltage, this motor start capacitor provides safe and stable performance in demanding electrical installations. It operates at a nominal frequency of 50/60Hz, features a tolerance of ±5%, and is manufactured with materials designed to offer good electrical stability, low dissipation, and long service life, helping to maintain proper motor operation and reduce failures caused by capacitor wear.

In addition, it incorporates 6.3x0.8mm male faston terminals, allowing quick and convenient connection in a wide variety of equipment. Its structure uses an MPP element, PP plastic casing, PBT core, and epoxy filling, features that enhance mechanical strength and reliability during continuous use. It also has a UL94-V-0 flame resistance rating and complies with recognized manufacturing standards for this type of component.

Technical Specifications:

- Capacitance: 70uF
- Rated voltage: 450VAC
- Nominal frequency: 50 / 60Hz
- Tolerance: ±5% at 100Hz / 25ºC
- Service life: 3000 to 10000 hours
- Terminals: Double 6.3x0.8mm male faston
- Dimensions: 55x120mm
- Mounting thread shown in diagram: M8

We offer a wide range of motor start capacitors in different capacitance values and formats:

- MOTOR START CAPACITORS

Datasheet

Price : 8,55 €

Retail Price (VAT include) : 10,35 €

Add to Cart

Related

Seeing 1 to 13 (13 products)

Search Results Pages: 1

CABLE MANGUERA ELECTRICA REDONDA 2x1.00mm

Cable manguera electrica redonda de 2x1.00mm.

- Voltaje Continuo: 300-500V
- Precio por metro

20% DE DESCUENTO PARA COMPRAS SUPERIORES A 100 METROS

1,39 €

MOTOR CAPACITOR 60uF 450VAC

This 60uF 450VAC motor capacitor is an essential component for the starting and stable operation of single-phase AC motors.

9,20 €

CONDENSADOR MOTOR 1uF+1.5uF 450VAC CON 3 CABLES

Condensador de arranque de motor doble con cables.

- Capacidad: 1uF+1.5uF - 5%
- Voltaje: 450Vca

3,57 €

MOTOR CAPACITOR 80uF 450VAC

This 80uF 450VAC motor capacitor is an essential component for the starting and stable operation of single-phase AC motors.

11,51 €

Z16508 N MALE CONNECTOR SOLDER RG213

N male connector to soldering cable RG-213.

6,64 €

CRC 5-56 Multi-Purpose Aerosol 100ml

The CRC 5-56 Multi-Purpose Aerosol is a penetrating and protective spray lubricant, specially formulated to keep mechanical and electrical components in optimal condition.

4,26 €

FASTON TERMINAL FEMALE PLUGGABLE WITH STOP 4011

Female pluggable terminal con reten. - Section: 1.00-2.50 mm. - For male: 6.3x0.8 mm.

0,12 €

4656N EBM-PAPST FAN 119x119x38 mm 230V

CA fan 230V with exterior rotor and shaded pole motor.

- Dimensions: 119x119x38 mm

49,01 €

TIRA LED FLEXIBLE AMBAR 5050 IP65 5m

Tira led flexible de 5 metros con leds SMD de alta potencia 5050 y 60 leds por metro con proteccion IP65 contra el agua y alimentacion a 12V DC.

39,42 €

BOBINA CABLE FLEXIBLE 0.5mm ROJO 25m

Cable de conexion flexible multifilar de cobre estañado y color rojo, perfecto para tareas de diseño de circuitos y prototipado.

- Conductores: 0.5mm
- Longitud: Carrete de 25 metros

4,89 €

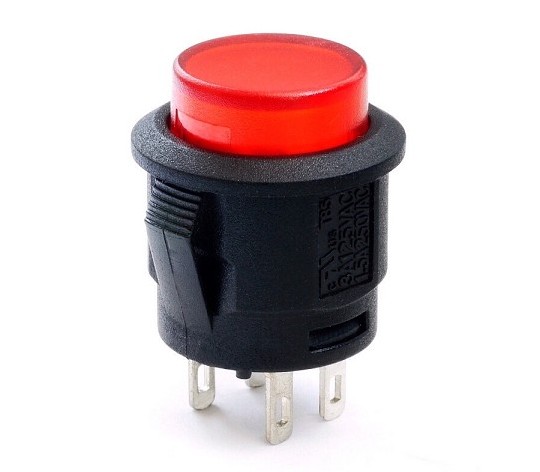

INTERRUPTOR LUMINOSO ROJO A PULSACION 12V
