FEMALE MILITARY PANEL BASE 13 PIN T-20 IP68

The 13-pin female base from Multi Contact is a high-performance interconnection solution designed for demanding industrial environments. With an aluminum housing, this connector provides mechanical strength and vibration resistance, making it ideal for professional automation, control, machinery, or transportation installations. It is also equivalent to EMSA reference BHE20B13AuQ.

- Size: T20
- Material: Aluminum Alloy
- Protection Rating: IP68
- Maximum Voltage and Current: 270V ? 10A
- Maximum Conductor Cross-Section: 1.75mm²
- Cable Diameter: 5 to 14mm

Its nickel-plated aluminum housing enhances heat dissipation, mechanical rigidity, and corrosion resistance, making it ideal for harsh industrial environments. The gold-plated brass contacts and thermoset or PPS insulators ensure low contact resistance and high reliability, supporting up to hundreds of thousands of mating cycles.

Application Areas:

- Factory automation equipment, PLCs, sensors, and actuators.
- Railway, marine, or transportation installations that require mechanical robustness and environmental protection.
- Electrical enclosures for machinery, robots, and assembly lines where the connector must withstand frequent cycles and harsh conditions.
- Combined signal/power systems that require a single, compact, reliable, and high-density interface.

Compatible with:

- MILITARY MALE CABLE CONNECTOR 13-PIN T-20 IP68

Allows mounting:

- RUBBER CAP FOR SIZE 20 MILITARY FEMALE CONNECTOR
- TAPON METALICO PARA BASE HEMBRA MILITAR TAMAÑO 20

Datasheet

Price : 12,79 €

Retail Price (VAT include) : 15,48 €

Add to Cart

Related

Seeing 1 to 12 (12 products)

Search Results Pages: 1

CABLE DATAL YCY 14x0.22mm

Cable apantallado de 14 hilos de 0.22mm de seccion con cubierta de PVC.

20% DE DTO. POR LA COMPRA DE LA BOBINA COMPLETA (100m).

3,27 €

RJ-3 REFLECTION PHOTOCELL CEBEK

Reflection photocell using infrareds with relay output. When the photocell detects an object, the module activates the output.

30,19 €

CONDENSADOR MKP 1.5uF 275VCA x2 R-27.5

Condensador MKP polyester.

- Rastor: 27.5mm
- Voltaje: 275V AC
- Capacidad: 1.5 uF

1,19 €

MILITARY MALE CABLE CONNECTOR 13-PIN T-20 IP68

This 13-pin Multi Contact male cable connector is a high-performance interconnection solution designed for demanding industrial environments.

40,17 €

TAPON GOMA PARA BASE HEMBRA MILITAR TAMAÑO 20

Tapon de goma para bases hembra militares tamaño 20.

6,55 €

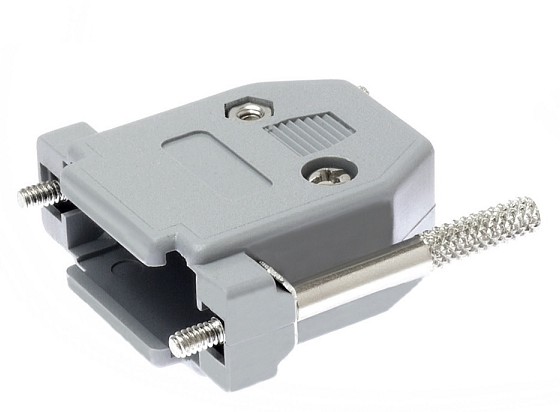

PLASTIC COVER FOR DB15 SUB-D CONNECTORS
