GX16 FEMALE AVIATION CONNECTOR 4 CONTACTS

The GX16 4-pin female aerial connector is a professional solution for industrial, robotics, automation and electronic applications requiring a secure, durable and easy-to-install connection. Its aviation-type GX16 design (Ø16mm) ensures excellent mechanical strength and stable performance even in demanding environments.

Built with a high-resistance metal housing, this connector provides a firm coupling thanks to its screw-locking system, preventing accidental disconnections and ensuring reliable power or signal transmission.

The 4-pin configuration offers greater versatility for distributing signals or power, making it ideal for sensors with reference lines, solenoids, controllers, measuring devices and small DC motors.

Key Features:

- GX16 series (Ø16mm), female aerial format for cable mounting.
- 3 metal contacts with excellent conductivity and insulation.
- Robust metal shell resistant to vibration, impact and continuous industrial use.
- Internal solder-type termination for a stable and secure connection.
- Screw-lock coupling ensures a safe and reliable mating with the corresponding male connector.
- Suitable for industrial automation, robotics, CNC, measurement equipment, lighting, audio and general electronics.

Technical Features:

- Contact resistance: 3M Ohms maximum
- Insulation resistance: 1000M Ohms to 500VDC
- Dielectric strength: 1000VAC - 1 minute
- Maximum voltage: 200VAC
- Rated current and voltage AC: 5A - 125V
- Connection: Solder type

This connector is compatible with:

- GX16 MALE AVIATION CONNECTOR 4 CONTACTS
- GX16 MALE PANEL-MOUNT CONNECTOR 4 PINS

We also have the same type of connector available in other pin configurations:

- GX16 CONNECTORS

Price : 1,22 €

Retail Price (VAT include) : 1,48 €

Add to Cart

Related

Seeing 1 to 15 (15 products)

Search Results Pages: 1

BATERIA NI-MH 1.2V 2200mA AA CON TERMINALES

Batería recargable NI-MH Fullwat de alta capacidad con terminales.

- Tamaño: AA
- Voltaje nominal: 1.2 V
- Capacidad nominal: 2200 mAh

2,88 €

CABLE DATAL YCY 4x0.22mm

Cable apantallado de 4 hilos de 0.22mm de seccion con cubierta de PVC.

20% DE DTO. POR LA COMPRA DE LA BOBINA COMPLETA (100m).

0,85 €

RADIAL ELECTROLYTIC CAPACITOR 4700uF 100V 35x40

Radial-Electrolytic Capacitor.

- Voltage: 100V
- Capacity: 4700 uF
- Dimensions: 35x40 mm

5,66 €

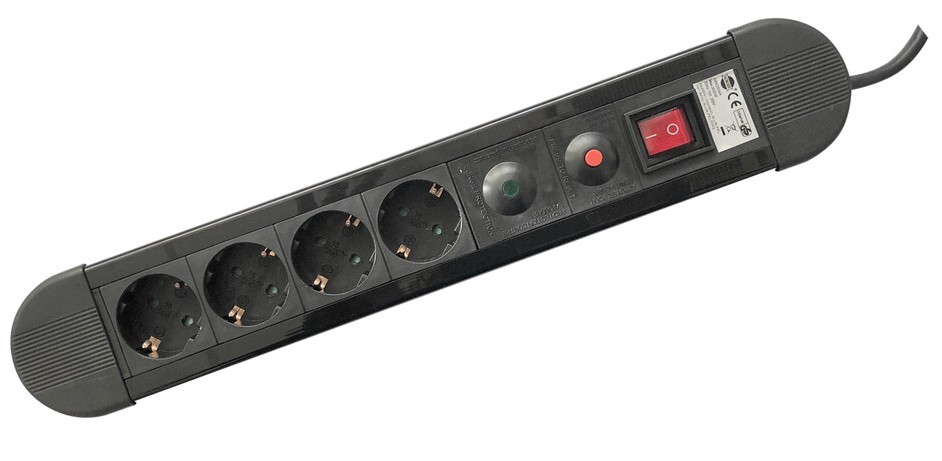

REGLETA DE PROTECCION 4 TOMAS CON INTERRUPTOR NEGRA
