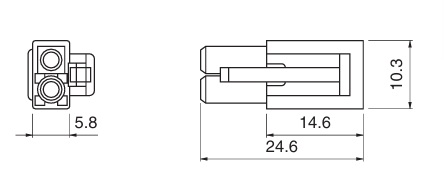

FEMALE MINI TAMIYA CONNECTOR

The JST ELP-02V is a 2-way female Mini Tamiya connector belonging to JST?s EL Connector series, designed for wire-to-wire crimp connections. It is a terminal housing with a compact 4.5mm pitch design, secure mechanical locking, and good tolerance to misalignment during mating, helping to ensure a firm and stable connection even in assemblies subject to frequent handling.

This model is suitable for electrical and electronic applications where a polarized, durable, and relatively easy-to-install connector is required, such as battery packs, RC equipment, small power systems, internal wiring, and other moderate-to-high current connections in a compact format. The EL series stands out for its durable locking mechanism, the easy and secure insertion of the terminals, and its design as a detachable connector for wire harnesses.

Technical Specifications:

- Number of ways: 2 poles
- Pitch: 4.5mm
- Rated voltage of the series: 300V AC/DC max.
- Rated current of the series: up to 10A
- Cable: 0,5 to 1,25mm2

We also have the compatible male connector available:

- MALE MINI TAMIYA CONNECTOR

Datasheet

Price : 0,72 €

Retail Price (VAT include) : 0,87 €

Add to Cart
